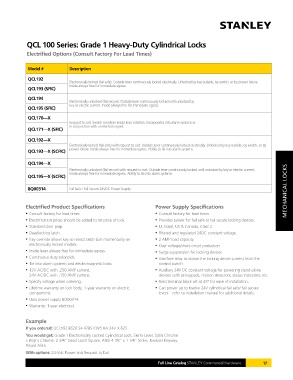

QCL 100 Series: Grade 1 Heavy-Duty Cylindrical Locks

Electrified Options (Consult Factory For Lead Times)

Model # Description

QCL192
Electronically locked (fail safe). Outside lever continuously locked electrically. Unlocked by key outside, by switch, or by power failure.
Inside always free for immediate egress.
QCL193 (SFIC)
QCL194
Electronically unlocked (fail secure). Outside lever continuously locked until unlocked by
key or electric current. Inside always free for immediate egress.
QCL195 (SFIC)
QCL170—X
Request to exit. Switch monitors inside lever rotation. Incorporates into alarm systems or
in conjunction with an electromagnet.
QCL171—X (SFIC)

QCL192—X
Electronically locked (fail safe) with request to exit. Outside lever continuously locked electrically. Unlocked by key outside, by switch, or by
power failure. Inside always free for immediate egress. Ability to tie into alarm systems.
QCL193—X (SCFIC)

QCL194—X
MECHANICAL LOCKS
Electronically unlocked (fail secure) with request to exit. Outside lever continuously locked until unlocked by key or electric current.
Inside always free for immediate egress. Ability to tie into alarm systems.
QCL195—X (SCFIC)
8Q00314 Fail Safe / Fail Secure 24VDC Power Supply

Electrified Product Specifications Power Supply Specifications
• Consult factory for lead times. • Consult factory for lead times.
• Electrification prices should be added to list price of lock. • Provides power for fail safe or fail secure locking devices.
• Standard door prep. • UL listed, US & Canada, Class 2.
• Deadlocking latch. • Filtered and regulated 24DC constant voltage.
• Key override allows key to retract latch bolt momentarily on • 2 AMP load capacity.
electronically locked models. • Over voltage/short-circuit protection.
• Inside lever always free for immediate egress. • Surge suppression for locking devices.
• Continuous duty solenoids. • Interface relay to isolate the locking device current from the
• Tie into alarm systems and electromagnetic locks. control switch.
• 12V AC/DC with .250 AMP current. • Auxiliary 24V DC constant voltage for powering stand-alone
24V AC/DC with .150 AMP current. devices such as keypads, motion detectors, status indicators, etc.
• Specify voltage when ordering. • Field terminal block set at 45° for ease of installation.
• Lifetime warranty on lock body; 1-year warranty on electric • Can power up to twelve 24V cylindrical fail safe/ fail secure
components. levers – refer to installation manual for additional details.
• Uses power supply 8Q00314.
• Warranty: 1-year electrical.

Example
If you ordered: QCL192 E626 S4 478S KW5 KA 24V X 625
You would get: Grade 1 Electronically Locked Cylindrical Lock, Sierra Lever, Satin Chrome
x Bright Chrome, 2 3/4" Dead Latch Square, ANSI 4 7⁄8" x 1 1/4" Strike, Kwikset Keyway,
Keyed Alike.
With options: 24-Volt Power and Request to Exit
