General
information

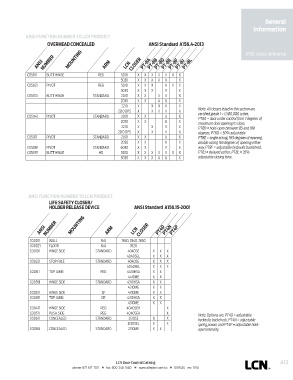

ANSI FUNCTION NUMBER TO LCN PRODUCT
OVERHEAD CONCEALED ANSI Standard A156.4-2013 ANSI cross reference

ANSI NUMBER MOUNTING ARM LCN CLOSER PT-8A PT-8B PT-8D PT-8E PT-8F PT-8J PT-8L

C05011 BUTT HINGE REG 5010 X X X X X X X
5030 X X X X X X
C05021 PIVOT REG 5010 X X X X X X
5030 X X X X X
C05031 BUTT HINGE STANDARD 2010 X X X X X
2030 X X X X X
2210 X X X X X
2210 DPS X X X X X Note: All closers listed in this section are
certified grade 1 = 1,500,000 cycles.
C05041 PIVOT STANDARD 2010 X X X X PT8A = door under control from 7 degrees of
2030 X X X X maximum door opening to close,
2210 X X X X PT8B = hold-open between 85 and 180
2210 DPS X X X X degrees, PT8D = 50% adjustable
C05071 PIVOT STANDARD 2010 X X X X PT8E = single acting, 165 degrees of opening,
2030 X X X X double acting 165 degrees of opening either
C05081 PIVOT STANDARD 6030 X X X X way, PT8F = adjustable hydraulic backcheck,
C05091 BUTT HINGE HO 5010 X X X X X X X PT8J = delayed action, PT8L = 35%
5030 X X X X X X adjustable closing force.

ANSI FUNCTION NUMBER TO LCN PRODUCT
LIFE SAFETY CLOSER/
HOLDER RELEASE DEVICE ANSI Standard A156.15-2001

ANSI NUMBER MOUNTING ARM LCN CLOSER PT4D PT4N PT4P

C00011 WALL N/A 7830, 7840, 7850
C00021 FLOOR N/A 7820
C00191 HINGE SIDE STANDARD 4040SE X X X
4040SEL X X X
C00231 STOP FACE STANDARD 4040SE X X X
4040SEL X X X
C00311 TOP JAMB REG 4410HSA X X
4410ME X X
C00351 HINGE SIDE STANDARD 4310HSA X X
4310ME X X
C00371 HINGE SIDE SF 4310ME X X
C00391 TOP JAMB DE 4310HSA X X
4310ME X X
C00471 HINGE SIDE REG 4040SEH X
C00511 PUSH SIDE REG 4040SEH X Note: Options are; PT4D = adjustable
C00611 CONCEALED STANDARD 3130SE X X hydraulic backcheck, PT4N = adjustable
3130SEL X X spring power, and PT4P = adjustable hold-
C00651 CONCEALED STANDARD 2310ME X X open intensity.

LCN Door Control Catalog A13
phone: 877-671-7011 n fax: 800-248-1460 n www.allegion.com/us n 009426 rev. 11/16
