General
information

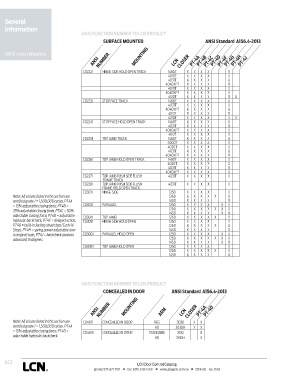

ANSI FUNCTION NUMBER TO LCN PRODUCT
SURFACE MOUNTED ANSI Standard A156.4-2013

ANSI cross reference MOUNTING
ANSI NUMBER LCN CLOSER PT-4A PT-4B PT-4C PT-4D PT-4F PT-4G PT-4H PT-4J

C02221 HINGE SIDE HOLD OPEN TRACK 1460T X X X X X
4010T X X X X X
4031T X X X X X
4040XPT X X X X X
4031T X X X X X
4040XPT X X X X X
4510T X X X X X X
C02231 STOP FACE TRACK 1460T X X X X X
4031T X X X X X
4040XPT X X X X X
4110T X X X X X
4210T X X X X X X
C02241 STOP FACE HOLD OPEN TRACK 1460T X X X X X
4031T X X X X X
4040XPT X X X X X
4110T X X X X X
C02251 TOP JAMB TRACK 1460T X X X X X
4000T X X X X X
4020T X X X X X
4031T X X X X X
4040XPT X X X X X
C02261 TOP JAMB HOLD OPEN TRACK 1460T X X X X X
4020T X X X X X
4031T X X X X X
4040XPT X X X X X
C02271 TOP JAMB PUSH SIDE FLUSH 4031T X X X X X
FRAME TRACK
C02281 TOP JAMB PUSH SIDE FLUSH 4031T X X X X X
FRAME HOLD OPEN TRACK
C03011 HINGE SIDE 1250 X X X X X
Note: All closers listed in this section are 1260 X X X X X X
certified grade 1 = 1,500,000 cycles, PT4A 1450 X X X X X
= 15% adjustable closing force, PT4B = C03021 PARALLEL 1250 X X X X X X
35% adjustable closing force, PT4C = 50% 1260 X X X X X X X X X X X
X
1450
X
adjustable closing force, PT4D = adjustable C03041 TOP JAMB 1260 X X X X X X
hydraulic backcheck, PT4F = delayed action, C03051 HINGE SIDE HOLD OPEN 1250 X X X X X
PT4G = built-in factory dead stop (Cush-N- 1260 X X X X X X
Stop), PT4H = spring power adjustable over 1450 X X X X X
a range of sizes, PT4J = backcheck position C03061 PARALLEL HOLD OPEN 1250 X X X X X X
advanced 15 degrees. 1260 X X X X X X X
1450 X X X X X X
C03081 TOP JAMB HOLD OPEN 1250 X X X X X
1260 X X X X X X
1450 X X X X X

ANSI FUNCTION NUMBER TO LCN PRODUCT
CONCEALED IN DOOR ANSI Standard A156.4-2013

ANSI NUMBER MOUNTING ARM LCN CLOSER PT-4A PT-4D

Note: All closers listed in this section are C04011 CONCEALED IN DOOR REG 3030 X X
certified grade 1 = 1,500,000 cycles. PT4A HO 3030H X X
= 15% adjustable closing force, PT4D = C04031 CONCEALED IN DOOR STANDARD 3130 X
adjustable hydraulic backcheck. HO 3130H X

A12 LCN Door Control Catalog
