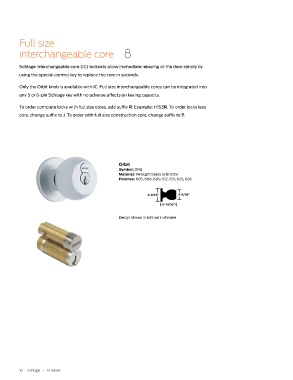

Full size

interchangeable core

Schlage in ter change able core (IC) locksets allow immediate rekeying at the door simply by
using the special control key to replace the core in seconds.

Only the Orbit knob is available with IC. Full size interchangeable cores can be integrated into
any 5 or 6-pin Schlage key with no adverse affects on keying capacity.

To order complete locks with full size cores, add suffix R. Example: H153R. To order locks less
core, change suffix to J. To order with full size construction core, change suffix to T.

Orbit
Symbol: ORB
Material: Wrought brass or bronze
Finishes: 605, 606, 609, 612, 613, 625, 626

2-9/16" 2-5/16"

2-19/32"

Design shown in 626 satin chrome

16 • Schlage • H Series
