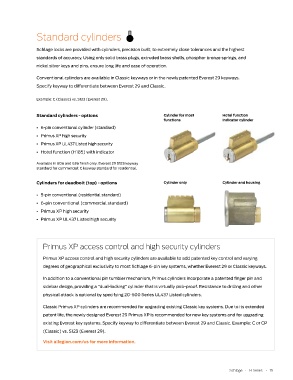

Page 12 - Cerraduras Schlage

Standard cylinders

Schlage locks are provided with cylinders, precision built, to extremely close tolerances and the highest
standards of accuracy. Using only solid brass plugs, extruded brass shells, phosphor bronze springs, and
nickel silver keys and pins, ensure long life and ease of operation.

Conventional cylinders are available in Classic keyways or in the newly patented Everest 29 keyways.
Specify keyway to differentiate between Everest 29 and Classic.

Example: C (Classic) vs. S123 (Everest 29).

Standard cylinders - options Cylinder for most Hotel function
functions indicator cylinder
• 6-pin conventional cylinder (standard)
• Primus XP high security
• Primus XP UL437 Listed high security
• Hotel function (H185) with indicator

Available in 606 and 626 finish only. Everest 29 S123 keyway
standard for commercial; C keyway standard for residential.

Cylinders for deadbolt (top) - options Cylinder only Cylinder and housing

• 5-pin conventional (residential standard)
• 6-pin conventional (commercial standard)
• Primus XP high security
• Primus XP UL437 Listed high security

Primus XP access control and high security cylinders

Primus XP access control and high security cylinders are available to add patented key control and varying
degrees of geographical exclusivity to most Schlage 6-pin key systems, whether Everest 29 or Classic keyways.

In addition to a conventional pin tumbler mechanism, Primus cylinders incorporate a patented finger pin and
sidebar design, providing a “dual-locking” cylinder that is virtually pick-proof. Resistance to drilling and other
physical attack is optional by specifying 20-500 Series UL437 Listed cylinders.

Classic Primus XP cylinders are recommended for upgrading existing Classic key systems. Due to its extended
patent life, the newly designed Everest 29 Primus XP is recommended for new key systems and for upgrading

existing Everest key systems. Specify keyway to differentiate between Everest 29 and Classic. Example: C or CP
(Classic) vs. S123 (Everest 29).
Visit allegion.com/us for more information.

Schlage • H Series • 15
