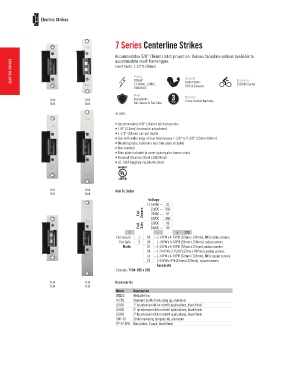

P. 11
Electric Strikes
7 Series Centerline Strikes
Accommodates 5/8" (16mm) latch projection. Various faceplate options available to
accommodate most frame types.
ELECTRIC STRIKES Insert Depth: 1-1/2"D (38mm)
Energy
280mA
1
500lbf Static
11-16VAC, 12VDC, Strength Endurance
250,000 Cycles
70ft-lb Dynamic
24VACVDC
Mode 3 Warranty
71
7104 04 7105 05 Available In 3 Year Limited Warranty
71
730404 730505 Fail-Secure & Fail-Safe
73
73
1 At 12VDC
• Accommodates 5/8" (16mm) latch projection
• 1/8" (3.2mm) horizontal adjustment
• 1-1/2" (38mm) cut-out depth
• Use with wide range of door thicknesses 1-3/8" to 2-3/8" (35mm-60mm)
• Mounting tabs, fasteners and trim plate included
• Non-handed
• Trim plate included to cover up irregular frame cutout
• Brushed Stainless Steel (32D) finish
• UL 1034 burglary-resistant Listed
7107 07 71 How To Order
71
7108 08
730808
730707 73
73
Voltage
11-16VAC 01
Fail- Secure 12VDC 05D
24VAC
07
24VDC 08D
Fail- Safe 12VDC 06
24VDC
09
7 - x 32D
Fail-Secure 1 04 –1-1/4"W x 4-7/8"H (32mm x 124mm), ANSI radius corners
Fail-Safe 3 05 –1-1/8"W x 5-7/8"H (29mm x 150mm), radius corners
Mode 07 –1-1/4"W x 6-7/8"H (32mm x 175mm), radius corners
08 –1-7/16"W x 7-15/16"(37mm x 202mm), radius corners
14 –1-1/4"W x 4-7/8"H (32mm x 124mm), ANSI square corners
19 –1-3/8"W x 9"H (34mm x 229mm), square corners
Faceplate
Example: 71 04-05D x 32D
7114 14 7119 19 Accessories
71
71
731919
73
731414 73
Model Description
BXES2 Weldable box
4/7JIG Standard profile frame prep jig, aluminum
LEK01 1" lip extension kit for retrofit applications, black finish
LEK02 2" lip extension kit for retrofit applications, black finish
LEK03 3" lip extension kit for retrofit applications, black finish
SMT-01 Strike marketing template kit, aluminum
TP-47-5PK Trim plates, 5 pack, black finish
