Electric Strikes

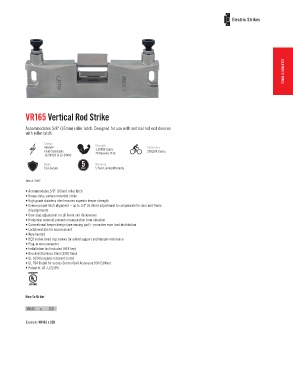

VR165 Vertical Rod Strike ELECTRIC STRIKES

Accommodates 5/8" (16mm) roller latch. Designed for use with vertical rod exit devices
with roller latch.

Energy Strength
450mA 1 1,500lbf Static Endurance
Field-Selectable 70 Dynamic ft-lb 250,000 Cycles
12/24VDC & 12-24VAC
Mode Warranty
Fail-Secure 5 Year Limited Warranty

1 Max at 12VDC
• Accommodates 5/8" (16mm) roller latch
• Heavy-duty, surface mounted strike
• High grade stainless steel ensures superior keeper strength
• Ensure proper latch alignment – up to 1/4" (6.4mm) adjustment to compensate for door and frame
misalignments
• Door stop adjustment for different rail thicknesses
• Horizontal solenoid prevents manipulation from vibration
• Conventional keeper design (one moving part) - promotes even load distribution
• Lockdown tabs for secure mount
• Non-handed
• HEX socket head cap screws for added support and tamper-resistance
• Plug-in wire connector
• Installation tool included (HEX key)
• Brushed Stainless Steel (32D) finish
• UL 1034 burglary-resistant Listed
• UL 294 Listed for access Control Unit Accessory (6th Edition)
• Patent #: US 7,722,097

How To Order

VR165 x 32D

Example: VR165 x 32D
