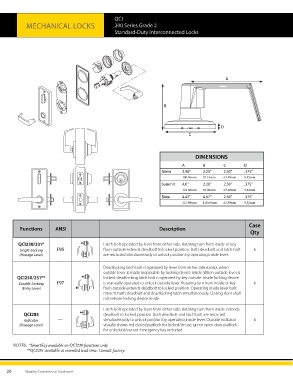

QCI
MECHANICAL LOCKS 200 Series Grade 2
Standard-Duty Interconnected Locks

A

A

B

B
D
C D
C

DIMENSIONS
A B C D
A B C D
Sierra 3.96" 2.25" 2.50" .375"
100.58mm 57.15mm 63.50mm 9.52mm
Summit 4.0" 2.20" 2.50" .375"
101.60mm 55.88mm 63.50mm 9.52mm
Slate 4.47" 4.67" 2.50" .375"
113.50mm 118.60mm 63.50mm 9.52mm

Case
Functions ANSI Description
Qty

QCI230/231* Latch bolt operated by lever from either side. Rotating turn from inside or key
Single-Locking F95 from outside extends deadbolt to locked position. Both deadbolt and latch bolt 6
(Passage Lever) are retracted simultaneously to unlock position by operating inside lever.

Deadlocking latch bolt is operated by lever from either side except when
outside lever is made inoperable by locking device inside. When outside lever is
QCI250/251** locked, deadlocking latch bolt is operated by key outside. Inside locking device
Double-Locking F97 is manually operated to unlock outside lever. Rotating turn from inside or key 6
(Entry Lever) from outside extends deadbolt to locked position. Operating inside lever bolt
retracts both deadbolt and deadlocking latch simultaneously. Closing door shall
not release locking device inside.

Latch bolt operated by lever from either side. Rotating turn from inside extends
QCI285 deadbolt to locked position. Both deadbolt and latch bolt are retracted
Indicator — simultaneously to unlock position by operating inside lever. Outside indicator 6
(Passage Lever) visually shows red closed padlock for locked/in-use, green open door padlock
for unlocked/vacant. Emergency key included.

NOTES: *SmartKey available on QCI230 functions only.
**QCI251 available at extended lead time. Consult factory.

26 Stanley Commercial Hardware
