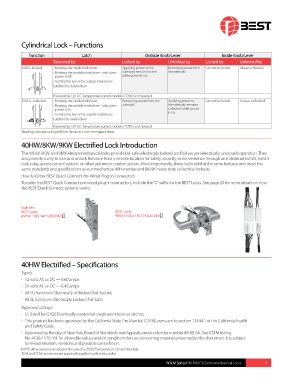

P. 7
Cylindrical Lock – Functions
Function Latch Outside Knob/Lever Inside Knob/Lever
Operated by Locked by Unlocked by Locked by Unlocked by
DDEL–Locked • Rotating the inside knob/lever, Applying power to the Removing power from Cannot be locked Always unlocked
• Rotating the outside knob/lever– only when solenoid; remains locked the solenoid
power is off, while power is on.
• Turning the key in the outside knob/lever.
Latchbolt is deadlocked
9KM IDH MAX ®
Cylindrical Powered by 12V DC. Temperature control module (TCM) is not needed.
DDEU–Un locked • Rotating the inside knob/lever, Removing power from the Applying power to Cannot be locked Always unlocked
• Rotating the outside knob/lever– only when solenoid the solenoid; remains
power is on, unlocked while power
• Turning the key in the outside knob/lever. is on.
Latchbolt is deadlocked
Powered by 12V DC. Temperature control module (TCM) is not needed.
Shading indicates a ridged lever/knob in a non-energized state.
40HW/8KW/9KW Electrified Lock Introduction
The 40HW, 8KW, and 9KW electromechanical locks provide fail-safe (electrically locked) and fail-secure (electrically unlocked) operation. They
also provide a way to lock and unlock the door from a remote location for safety, security, or convenience through an individual switch, switch
lock, relay, access control system, or other automatic control system. More importantly, these locks exhibit the same features and meet the
same standards and specifications as our mechanical 40H mortise and 8K/9K heavy duty cylindrical locksets.
How To Order BEST Quick Connect Pre-Wired Plug-In Connectors
To order the BEST Quick Connect pre-wired plug-in connectors, include the “C” suffix for the BEST Locks. See page 20 for more details on how
the BEST Quick Connect systems works.
Example:
BEST Locks BEST Locks
45HW 7 DEL 14H 626 RH DSC 9KW 37 DEU 15CS TK 626 24 VC
40HW Electrified – Specifications
Types:
• 12 volts AC or DC — 0.60 amps
• 24 volts AC or DC — 0.45 amps
• All EU functions: Electrically Unlocked (Fail Secure)
• All EL functions: Electrically Locked (Fail Safe)
Approval Listings:
• UL listed for GYQS Electrically-controlled singlepoint locks or latches.
• This product has been approved by the California State Fire Marshal (CSFM) pursuant to section 13144.1 of the California Health
and Safety Code.
• Approved by the city of New York Board of Stan dards and Appeals under calendar number 49-88-SA. See CSFM listing
No. 4136-1175:101 for al low able values and/or conditions for use concerning material pre sent ed in this doc u ment. It is subject
to re-examination, revisions and possible cancellation.
NOTE: All w-series locks require the use of a (TCM) Temperature Control Module.
TCM and TCM connector are supplied standard with every order.
W & M Series IDH MAX & Electromechanical Locks 7
®
