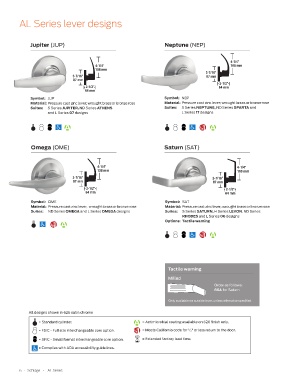

AL Series lever designs

Jupiter (JUP) Neptune (NEP)

Symbol: JUP Symbol: NEP
Material: Pressure cast zinc lever; wrought brass or bronze rose Material: Pressure cast zinc lever; wrought brass or bronze rose
Suites: S Series JUPITER, ND Series ATHENS Suites: S Series NEPTUNE, ND Series SPARTA and
and L Series 07 designs L Series 17 designs

Omega (OME) Saturn (SAT)

Symbol: OME Symbol: SAT
Material: Pressure cast zinc lever; wrought brass or bronze rose Material: Pressure cast zinc lever; wrought brass or bronze rose
Suites: N D Series OMEGA and L Series OMEGA designs Suites: S Series SATURN, H Series LEVON, ND Series
RHODES and L Series 06 designs
Options: Tactile warning

Tactile warning
Milled
Order as follows:
8SA for Saturn

Only available on outside lever, unless otherwise specified

All designs shown in 626 satin chrome
= Standard cylinder. = Antimicrobial coating available on 626 finish only.

1
= FSIC - Full size interchangeable core option. = Meets California code for ⁄2" or less return to the door.
= SFIC - Small format interchangeable core option. = Extended factory lead time.
= Complies with ADA accessibility guidelines.

6 • Schlage • AL Series
