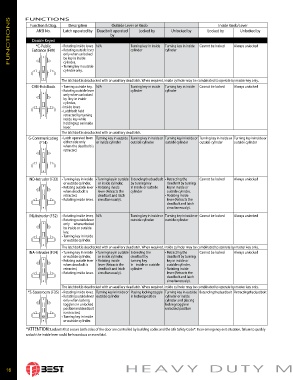

FUNCTIONS FUNCTIONS Description Deadbolt operated Turning key in inside Turning key in inside Cannot be locked Always unlocked
Outside Lever or Knob
Function & Diag.
Inside Knob/Lever
ANSI No.
Unlocked by
Locked by
Locked by
Unlocked by
Latch operated by
by
Double Keyed
*C-Public
• Rotating inside lever, N/A
• Rotating outside lever
cylinder
Entrance (F09)
cylinder
only when unlocked
by key in inside
cylinder,
• Turning key in outside
cylinder only.
The latchbolt is deadlocked with an auxiliary deadlatch. When required, inside cylinder may be combinated to operate by master key only.
CHB-Holdback • Turning outside key, N/A Turning key in inside Turning key in inside Cannot be locked Always unlocked
• Rotating outside lever cylinder cylinder
only when unlocked
by key in inside
cylinder,
• Inside lever,
• Latchbolt held
retracted by turning
inside key while
holding up on inside
lever.
The latchbolt is deadlocked with an auxiliary deadlatch.
G-Communicating • Latch operated from Turning key in outside Turning key in inside or Turning key in inside or Turning key in inside or Turning key in inside or
(F14) either side only or inside cylinder outside cylinder outside cylinder outside cylinder outside cylinder
when the deadbolt is
retracted.
IND-Intruder (F33) • Turning key in inside • Turning key in outside Extending the deadbolt • Retracting the Cannot be locked Always unlocked
or outside cylinder, or inside cylinder, by turning key deadbolt by turning
• Rotating outside lever • Rotating inside in inside or outside key in inside or
when deadbolt is lever (Retracts the cylinder outside cylinder,
retracted, deadbolt and latch • Rotating inside
• Rotating inside lever. simultaneously). lever (Retracts the
deadbolt and latch
simultaneously).
INL-Intruder (F32) • Rotating inside lever, N/A Turning key in inside or Turning key in inside or Cannot be locked Always unlocked
• Rotating outside lever outside cylinder outside cylinder
only when unlocked
by inside or outside
key,
• Turning key in inside
or outside cylinder.
The latchbolt is deadlocked with an auxiliary deadlatch. When required, inside cylinder may be combinated to operate by master key only.
INA-Intruder (F34) • Turning key in inside • Turning key in outside Extending the • Retracting the Cannot be locked Always unlocked
or outside cylinder, or inside cylinder, deadbolt by deadbolt by turning
• Rotating outside lever • Rotating inside turning key key in inside or
when deadbolt is lever (Retracts the in inside or outside outside cylinder,
retracted, deadbolt and latch cylinder • Rotating inside
• Rotating inside lever. simultaneously). lever (Retracts the
deadbolt and latch
simultaneously).
The latchbolt is deadlocked with an auxiliary deadlatch. When required, inside cylinder may be combinated to operate by master key only.
*S-Storeroom (F35) • Rotating inside lever, Turning key in inside or Placing locking toggle Turning key in outside Extending the deadbolt Retracting the deadbolt
• Rotating outside lever outside cylinder in locked position cylinder or inside
only when locking cylinder and placing
toggle is in unlocked locking toggle in
position and deadbolt unlocked position
is retracted,
• Turning key in inside
or outside cylinder.
*ATTENTION: Locksets that secure both sides of the door are controlled by building codes and the Life Safety Code®. In an emergency exit situation, failure to quickly
unlock the inside lever could be hazardous or even fatal.

HEAVY DUTY MORTISE LOCKS
