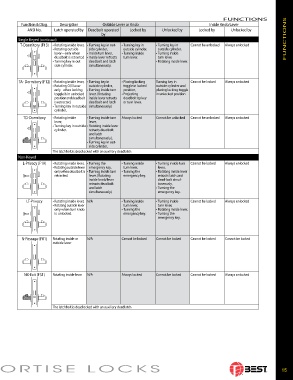

FUNCTIONS
Function & Diag. Description Outside Lever or Knob Inside Knob/Lever
ANSI No. Latch operated by Deadbolt operated Locked by Unlocked by Locked by Unlocked by
by
Single Keyed (continued) FUNCTIONS
T-Dormitory (F13) • Rotating inside lever, • Turning key in out- • Turning key in • Turning key in Cannot be unlocked Always unlocked
• Rotating outside side cylinder, outside cylinder, outside cylinder,
lever—only when • Inside turn lever, • Turning inside • Turning inside
deadbolt is retracted • Inside lever retracts turn lever. turn lever.
• Turning key in out deadbolt and latch • Rotating inside lever.
side cylinder. simultaneously.

TA- Dormitory (F12) • Rotating inside lever, • Turning key in • Placing locking Turning key in Cannot be locked Always unlocked
• Rotating O/S lever outside cylinder, toggle in locked outside cylinder and
only when locking • Turning inside turn position, placing locking toggle
toggle is in unlocked lever. (Rotating • Projecting in unlocked position
position and deadbolt inside lever retracts deadbolt by key
is retracted, deadbolt and latch or turn lever.
• Turning key in outside simultaneously.)
cylinder.
TD-Dormitory • Rotating inside • Turning inside turn Always locked Cannot be unlocked Cannot be unlocked Always unlocked
lever, lever,
• Turning key in outside • Rotating inside lever
cylinder. retracts deadbolt
and latch
simultaneously.),
• Turning key in out-
side cylinder.
The latchbolt is deadlocked with an auxiliary deadlatch
Non-Keyed
L-Privacy (F19) • Rotating inside lever, • Turning the • Turning inside • Turning inside turn Cannot be locked Always unlocked
• Rotating outside lever emergency key, turn lever, lever,
only when deadbolt is • Turning inside turn • Turning the • Rotating inside lever
retracted. lever. (Rotating emergency key. retracts latch and
inside knob/lever dead-bolt si mul-
retracts deadbolt taneous ly,
and latch • Turning the
simultaneously.) emergency key.

LT-Privacy • Rotating inside lever, N/A • Turning inside • Turning inside Cannot be locked Always unlocked
• Rotating outside lever turn lever, turn lever,
only when turn knob • Turning the • Rotating inside lever,
is unlocked. emergency key. • Turning the
emergency key.

N-Passage (F01) Rotating inside or N/A Cannot be locked Cannot be locked Cannot be locked Cannot be locked
outside lever

NX-Exit (F31) Rotating inside lever N/A Always locked Cannot be locked Cannot be locked Always unlocked

The latchbolt is deadlocked with an auxiliary deadlatch

ORTISE LOCKS 15
