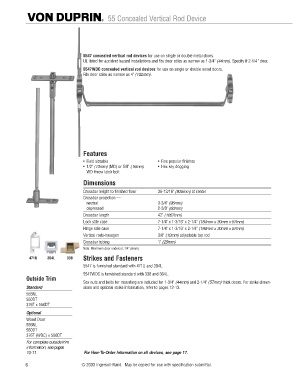

55 Concealed Vertical Rod Device

5547 concealed vertical rod devices for use on single or double metal doors.
UL listed for accident hazard installations and fits door stiles as narrow as 1-3/4" (44mm). Specify if 2-1/4" door.

5547WDC concealed vertical rod devices for use on single or double wood doors.
Fits door stiles as narrow as 4" (102mm).

Features

• Field sizeable • Five popular finishes
• 1/2" (13mm) (MD) or 5/8" (16mm) • Hex key dogging
WD throw latch bolt

Dimensions
Crossbar height to finished floor 36-13/16" (935mm) at center
Crossbar projection —
neutral 3-3/4" (95mm)
depressed 2-3/8" (60mm)
Crossbar length 42" (1067mm)
Lock stile case 7-1/4" x 1-3/16" x 2-1/4" (184mm x 30mm x 57mm)
Hinge stile case 7-1/4" x 1-3/16" x 2-1/4" (184mm x 30mm x 57mm)
Vertical rods-hexagon 3/8" (10mm) adjustable top rod
Crossbar tubing 1" (25mm)
Note: Maximum door undercut, 1/4" (6mm).

471U 304L 338 Strikes and Fasteners
5547 is furnished standard with 471U and 304L.
5547WDC is furnished standard with 338 and 304L.
Outside Trim
Sex nuts and bolts for mounting are included for 1-3/4" (44mm) and 2-1/4" (57mm) thick doors. For strike dimen-
Standard sions and optional strike information, refer to pages 12-13.
555NL
550DT
376T x 550DT
Optional
Wood Door
556NL
550DT
376T (WDC) x 550DT
For complete outside trim
information, see pages
10-11. For How-To-Order Information on all devices, see page 17.

6 6 6 6 6 © 2003 Ingersoll-Rand. May be copied for use with specification submittal.
