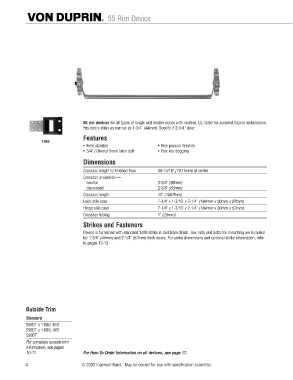

55 Rim Device

55 rim devices for all types of single and double doors with mullion, UL listed for accident hazard installations.
Fits doors stiles as narrow as 1-3/4" (44mm). Specify if 2-1/4" door.
Features
1409
• Field sizeable • Five popular finishes
• 3/4" (19mm) throw latch bolt • Hex key dogging

Dimensions
Crossbar height to finished floor 36-13/16" (1011mm) at center
Crossbar projection —
neutral 3-3/4" (95mm)
depressed 2-3/8" (60mm)
Crossbar length 42" (1067mm)
Lock stile case 7-1/4" x 1-3/16" x 2-1/4" (184mm x 30mm x 57mm)
Hinge stile case 7-1/4" x 1-3/16" x 2-1/4" (184mm x 30mm x 57mm)
Crossbar tubing 1" (25mm)
Strikes and Fasteners
Device is furnished with standard 1409 strike in dull black finish. Sex nuts and bolts for mounting are included
for 1-3/4" (44mm) and 2-1/4" (57mm) thick doors. For strike dimensions and optional strike information, refer
to pages 12-13.

Outside Trim
Standard
550DT x 110NL-MD
550DT x 110NL-WD
550DT
For complete outside trim
information, see pages
10-11. For How-To-Order Information on all devices, see page 17.

4 4 4 4 4 © 2003 Ingersoll-Rand. May be copied for use with specification submittal.
