P. 6

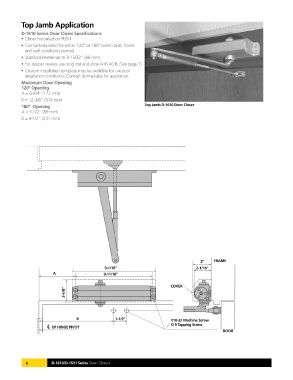

Top Jamb Application
D-1610 Series Door Closer Specifications
• Closer mounted on PUSH
• Can be templated for either 120° or 180° (when butt, frame
and wall conditions permit)
• Standard reveals up to 3-15/32” (88 mm)
• For deeper reveals use long rod and shoe A16-401L (See page 7)
• Custom installation template may be available for unusual
installation conditions. Contact dormakaba for assistance.
Maximum Door Opening
120° Opening
A = 6-3/4” (172 mm)
B = 12-3/8” (314 mm)
180° Opening Top Jamb D-1610 Door Closer
A = 3-1/2” (89 mm)
B = 9-1/2” (241 mm)
2” FRAME
9-1/16” 2-1/16”
A 9-11/16”
COVER
2-5/8”
B 1-1/2” #10-32 Machine Screw
O 5 Tapping Screw
OF HINGE PIVOT
DOOR
6 D-1610/D-1611 Series Door Closers
