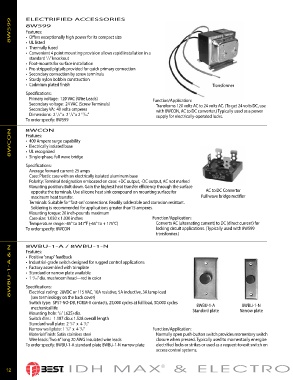

8W599 ELECTRIFIED ACCESSORIES
8W599
Features:
• Offers exceptionally high power for its compact size
• UL listed
• Thermally fused
• Convenient 4 point mounting provision allows rapid installation in a
standard /2” knockout
1
• Foot-mounts for surface installation
• Pre-stripped pigtails provided for quick primary connection
• Secondary connection by screw terminals
• Sturdy nylon bobbin construction
• Cadmium plated finish Transformer
Specifications:
Primary voltage: 120 VAC (Wire Leads) Function/Application:
Secondary voltage: 24 VAC (Screw Terminals) Transforms 120 volts AC to 24 volts AC. (To get 24 volts DC, use
Secondary VA: 40 volts-amperes with 8WCON, AC to DC converter.) Typ i cal ly used as a power
Dimensions: 2 /4” x 2 /8” x 2 /16” supply for electrically-op er at ed locks.
1
1
15
To order specify: 8W599
8WCON
8WCON Features:
• 400 Ampere surge capability
• Electrically isolated base
• UL recognized
• Single-phase, full wave bridge
Specifications:
Average forward current: 25 amps
Case: Plastic case with an electrically isolated aluminum base
Polarity: Terminal designation embossed on case: +DC output, -DC output, AC not marked
Mounting position: Bolt down. Gain the highest heat transfer ef fi cien cy through the surface
op po site the terminals. Use silicone heat sink compound on mounting surface for AC to DC Converter
max i mum heat transfer. Full wave bridge rectifier
Terminals: Suitable for “fast-on” connections. Readily solderable and corrosion resistant.
Soldering is recommended for applications greater than15 amperes.
Mounting torque: 20 inch-pounds maximum
Case size: 1.030 x 1.030 inches Function/Application:
Temperature range: -85° to 347°F (-65 ° to + 175°C) Converts AC (alternating current) to DC (direct current) for
To order specify: 8WCON locking circuit applications. (Typ i cal ly used with 8W599
transformer.)
8WBU-1-A / 8WBU-1-N
8WBU-1-A & N • Positive “snap” feedback
Features:
• Industrial-grade switch designed for rugged control applications
• Factory assembled with trimplate
• Standard or narrow plate available
• 1 /16” dia. mushroom head—red in color
3
Specifications:
Electrical rating: 28VDC or 115 VAC, 10A resistive, 5A in duc tive, 3A lamp load
(see ter mi nol o gy on the back cover)
Switch type: SPST-NO-DB, FORM-X contacts, 25,000 cycles at full load, 50,000 cycles
me chan i cal life 8WBU-1-A 8WBU-1-N
Mounting hole: /8” (.625) dia. Standard plate Narrow plate
5
Switch dim.: 1.187 dia.x 1.528 overall length
Standard wall plate: 2 /4” x 4 /2”
1
3
Narrow wall plate: 1 /2” x 4 /2” Function/Application:
1
1
Material/finish: Satin stainless steel Normally open push-button switch provides mo men tary switch
Wire leads: Two 6” long 20 AWG insulated wire leads closure when pressed. Typically used to momentarily en er gize
To order specify: 8WBU-1-A stan dard plate 8WBU-1-N narrow plate electrified locks or strikes or used as a re quest-to-exit switch on
access control systems.
IDH MAX & ELECTROMECHANICAL LOCKS
®
