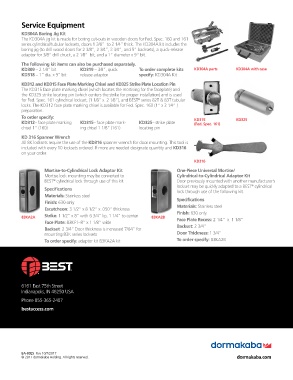

P. 12
Ser vice Equip ment
KD304A Boring Jig Kit
The KD304A jig kit is made for boring cut-outs in wooden doors for Fed. Spec. 160 and 161
series cylindrical/tubular locksets, doors 1 3/8” to 2 1⁄4” thick. The KD304A kit includes the
boring jig (to drill wood doors for 2 3/8”, 2 3⁄4”, 3 3⁄4”, and 5” backsets), a quick-release
adaptor for 3/8” drill chuck, a 2 1⁄8” bit, and a 1” diameter x 9” bit.
The following kit items can also be purchased separately.
KD309 – 2 1⁄8” bit KD319 – 3⁄8”, quick To order complete kits KD304A parts KD304A with case
KD318 – 1” dia. x 9” bit release adaptor specify: KD304A Kit
KD312 and KD315 Face Plate Marking Chisel and KD325 Strike Plate Location Pin
The KD315 face plate marking chisel (which locates the mortising for the faceplate) and
the KD325 strike locating pin (which centers the strike for proper installation) and is used
®
for Fed. Spec. 161 cy lin dri cal lockset, (1 1⁄8” x 2 1⁄8”), and BEST series 82T & 83T tubular
locks. The KD312 face plate marking chisel is avail able for Fed. Spec. 160 (1” x 2 1⁄4” )
preparation.
To order specify:
KD312– face plate marking KD315– face plate mark- KD325– strike plate KD315 KD325
(Fed. Spec. 161)
chisel 1” (160) ing chisel 1 1/8” (161) lo cat ing pin
KD 316 Spanner Wrench
All 8K locksets require the use of the KD316 spanner wrench for door mounting. This tool is
included with every 10 locksets ordered. If more are needed des ig nate quantity and KD316
on your order.
KD316
Mortise-to-Cylindrical Lock Adaptor Kit One-Piece Universal Mortise/
Mortise lock mounting may be converted to Cylindrical-to-Cylindrical Adaptor Kit
®
BEST cy lin dri cal lock through use of this kit. Door previously mounted with another man u fac tur er’s
®
lockset may be quickly adapt ed to a BEST cylindrical
Specifications lock through use of the following kit.
Materials: Stainless steel
Finish: 630 only Specifications
Escutcheon: 3 1/2” x 8 1/2” x .050” thickness Materials: Stainless steel
Finish: 630 only.
83KA2A Strike: 1 1/2” x 8” with 6 3/4” lip, 1 1/4” to center 83KA2B Face Plate Recess: 2 1/4” x 1 1/8”
Face Plate: 83KF1–8” x 1 1/8” wide
Backset: 2 3/4” Door thickness is increased 7/64” for Backset: 2 3/4”
mounting 83K series locksets Door Thickness: 1 3/4”
To order specify: adaptor kit 83KA2A kit To order specify: 83KA2B
6161 East 75th Street
Indianapolis, IN 46250 USA
Phone 855-365-2407
bestaccess.com
BA-0025 Rev 10/7/2017
