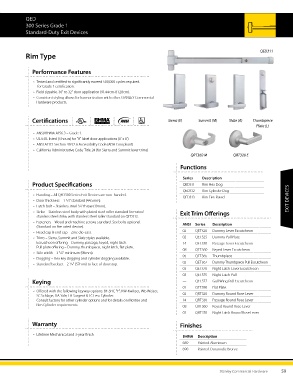

QED
300 Series Grade 1
Standard-Duty Exit Devices

QED311
Rim Type

Performance Features

• Tested and certified to significantly exceed 500,000 cycles required
for Grade 1 certification.
• Field sizeable. 36" to 32" door application (91.44cm-81.28cm).
• Consistent styling allows for harmonization with other STANLEY Commercial
Hardware products.

Certifications Sierra (E) Summit (M) Slate (A) Thumbpiece
Plate (L)
• ANSI/BHMA A156.3 – Grade 1.
• UL/cUL listed (3 hours) for “A” label door applications (8' x 8')
• ANSI A117.1 Section 404.2.6 Accessibility Code (ADA Compliant)
• California Administrative Code Title 24 (for Sierra and Summit lever trims)
QRT360 M QRT320 E
Functions

Series Description
Product Specifications QED311 Rim Hex Dog
QED312 Rim Cylinder Dog
• Handing – All QED300 Series Exit Devices are non-handed. QED313 Rim Fire-Rated
• Door thickness – 1 ⁄4" standard (44.5mm). EXIT DEVICES
3
• Latch bolt – Stainless steel ⁄4" throw (19mm).
3
• Strike – Stainless steel body with plated steel roller standard fire-rated Exit Trim Offerings
stainless steel strike, with stainless steel roller standard on QED313.
• Fasteners – Wood and machine screws standard. Sex bolts optional. ANSI Series Description
(Standard on fire-rated device).
02 QET320 Dummy Lever Escutcheon
• Head cap & end cap – Zinc die-cast.
• Trims – Sierra, Summit and Slate styles available. 02 QET325 Dummy Pull Plate
Escutcheon offering – Dummy, passage, keyed, night latch. 14 QET330 Passage Lever Escutcheon
Pull plate offering – Dummy, thumbpiece, night latch, flat plate. 08 QET360 Keyed Lever Escutcheon
• Stile width – 3 ⁄8" minimum (98mm).
7
05 QET365 Thumbpiece
• Dogging – Hex key dogging and cylinder dogging available.
02 QET367 Dummy Thumbpiece Pull Escutcheon
• Standard backset – 2 ⁄4" (57mm) to face of doorstop.
1
03 QET370 Night Latch Lever Escutcheon
03 QET375 Night Latch Pull
Keying — QET377 Gull Wing Pull Escutcheon
01 QET390 Flat Plate
• Offered with the following keyway options: BF-SFIC “F”, KW-Kwikset, WE-Weiser,
SC-Schlage, GA-Yale, LA-Sargent & LC-Less Cylinder. 02 QRT320 Dummy Round Rose Lever
Consult factory for other cylinder options and for details on Mortise and 14 QRT330 Passage Round Rose Lever
Rim Cylinder requirements. 08 QRT360 Keyed Round Rose Lever
03 QRT370 Night Latch Round Rose Lever
Warranty Finishes

• Lifetime Mechanical and 3-year finish BHMA Description
689 Painted Aluminum
690 Painted Duranodic Bronze

Stanley Commercial Hardware 59
