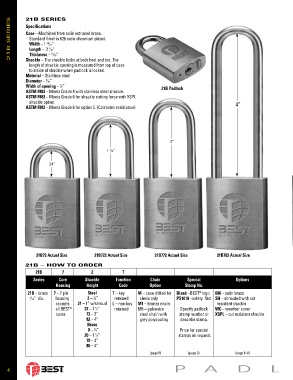

21B SERIES 21B SERIES
Specifications
Case – Machined from solid extruded brass.
Standard finish is 626 satin chromium plated.
Width – 1 ⁄32”
25
Length – 2 ⁄16”
1
Thickness – ⁄16”
13
Shackle – The shackle locks at both heel and toe. The
length of shackle opening is measured from top of case
to inside of shackle when padlock is locked.
Material – Stainless steel
Diameter – ⁄16”
5
Width of opening – ⁄8” 21B Padlock
7
ASTM F883 – Meets Grade 4 with stainless steel shackle.
ASTM F883 – Meets Grade 6 for shackle cutting force with XSPL
shackle option. 4”
ASTM F883 – Meets Grade 6 for option E. (Corrosion resistance).

2”

1
1 /2”
3/4”

21B72 Actual Size 21B722 Actual Size 21B772 Actual Size 21B782 Actual Size 41B72 Actual Size
21B – HOW TO ORDER
21B 7 2 T
Series Core Shackle Function Chain Special Options
Housing Height Code Option Stamp No.
21B – brass 7 – 7 pin Steel T – key M – case drilled for Blank –BEST logo 606 – satin brass
®
3
5 /16” dia. housing 2 – ⁄4” retained clevis only PS1010 –safety first SH – shrouded with cut
accepts 21 – 1” w/shroud L – non-key M1 – bronze chain resistant shackle
all BEST 22 – 1 ⁄2” retained M5 – galvanize Specify padlock WC – weather cover
1
®
cores 72 – 2” steel chain with stamp number or XSPL – cut resistant shackle
82 – 4” grey polycoating describe stamp.
Brass
0 – ⁄4” Price for special
3
20 – 1 ⁄2” stamps on request.
1
70 – 2”
80 – 4”
(page 8) (page 8) (page 6–9)
