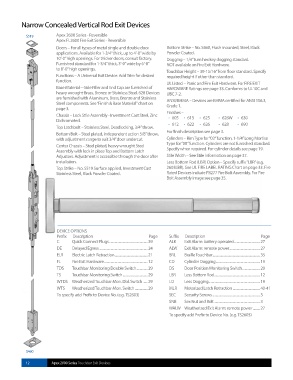

P. 12
Narrow Concealed Vertical Rod Exit Devices
S519 Apex 2600 Series - Reversible
Apex FL2600 Fire Exit Series - Reversible
Doors – For all types of metal single and double door Bottom Strike – No. S460, Flush mounted, Steel, Black
applications. Available for 1-3/4” thick, up to 4’-0” wide by Powder Coated.
10’-0” high openings. For thicker doors, consult factory. Dogging – 1/4” turn hex key dogging standard.
Furnished standard for 1-3/4” thick, 3’-0” wide by 6’-8” NOT available on Fire Exit Hardware.
to 8’-0” high openings. Touchbar Height – 39-15/16” from floor standard. Specify
Functions – A Universal Exit Device. Add Trim for desired required height if other than standard.
function. UL Listed – Panic and Fire Exit Hardware. For FIRE EXIT
Base Material -–Side Filler and End Cap are furnished of HARDWARE Ratings see page 33. Conforms to UL10C and
heavy wrought Brass, Bronze or Stainless Steel. 628 Devices UBC 7-2.
are furnished with Aluminum, Brass, Bronze and Stainless ANSI/BHMA – Devices are BHMA certified for ANSI 156.3,
Steel components. See “Finish & Base Material” chart on Grade 1.
page 3.
Chassis – Lock Stile Assembly - Investment Cast Steel, Zinc Finishes –
Dichromated. • 605 • 613 • 625 • 626W • 630
Top Latchbolt – Stainless Steel, Deadlocking, 3/4” throw. • 612 • 622 • 626 • 628 • 690
Bottom Bolt – Steel plated, independent action 5/8” throw, For finish description see page 3.
with adjustment range to suit 3/4” door undercut. Cylinders – Rim Type for “03” function, 1-1/4” Long Mortise
Center Chassis – Steel plated, heavy wrought Steel Type for “08” function. Cylinders are not furnished standard.
Assembly with lock in place Top and Bottom Latch Specify when required. For cylinder details see page 19.
Adjustors. Adjustment is accessible through the door after Stile Width – See Stile Information on page 37.
installation. Less Bottom Rod (LBR) Option – Specify suffix “LBR” (e.g.
Top Strike – No. S519 Surface applied, Investment Cast 2603LBR). See UL FIRE LABEL RATING Chart on page 33. Fire
Stainless Steel, Black Powder Coated. Rated Devices include FB277 Fire Bolt Assembly. For Fire
Bolt Assembly image see page 35.
DEVICE OPTIONS
Prefix Description Page Suffix Description Page
C Quick Connect Plugs ................................................39 ALK Exit Alarm: battery operated ................................27
DE Delayed Egress ............................................................24 ALW Exit Alarm: remote power ......................................27
ELR Electric Latch Retraction .........................................21 BRL Braille Touchbar ...........................................................35
FL Fire Exit Hardware ......................................................12 CD Cylinder Dogging .......................................................19
TDS Touchbar Monitoring Double Switch ..............29 DS Door Position Monitoring Switch ......................29
TS Touchbar Monitoring Switch ...............................29 LBR Less Bottom Rod .........................................................12
WTDS Weatherized Touchbar Mon. Dbl. Switch ......29 LD Less Dogging ................................................................19
WTS Weatherized Touchbar Mon. Switch ................29 MLR Motorized Latch Retraction ..................................40-41
To specify add Prefix to Device No. (e.g. TS2603) SEC Security Screws ...........................................................3
SNB Sex Nut and Bolt .........................................................3
WALW Weatherized Exit Alarm: remote power .........27
To specify add Prefix to Device No. (e.g. TS2603)
S460
12 Apex 2000 Series Touchbar Exit Devices
