QED

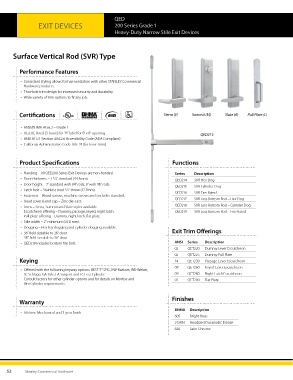

EXIT DEVICES 200 Series Grade 1
Heavy-Duty Narrow Stile Exit Devices

Surface Vertical Rod (SVR) Type

Performance Features

• Consistent styling allows for harmonization with other STANLEY Commercial
Hardware products.
• Thru-bolt trim design for increased security and durability.
• Wide variety of trim options to fit any job.

Certifications Sierra (E) Summit (M) Slate (A) Pull Plate (L)

• ANSI/BHMA A156.3 – Grade 1
• UL/cUL listed (3 hours) for “A” label for 8' x 8' opening QED215
• ANSI A117.1 Section 404.2.6 Accessibility Code (ADA Compliant)
• California Administrative Code Title 24 (for lever trims)

Product Specifications Functions

• Handing – All QED200 Series Exit Devices are non-handed. Series Description
3
• Door thickness – 1 ⁄4" standard (44.5mm). QED214 SVR Hex Dog
• Door height – 7' standard with 84" rods; 8' with 96" rods. QED215 SVR Cylinder Dog
• Latch bolt – Stainless steel ⁄2" throw (12.7mm).
1
QED216 SVR Fire-Rated
• Fasteners – Wood screws, machine screws and sex bolts standard.
QED217 SVR Less Bottom Rod – Hex Dog
• Head cover & end cap – Zinc die-cast.
QED218 SVR Less Bottom Rod – Cylinder Dog
• Trims – Sierra, Summit and Slate styles available.
Escutcheon offering – Dummy, passage, keyed, night latch. QED219 SVR Less Bottom Rod – Fire-Rated
Pull plate offering – Dummy, night latch, flat plate.
• Stile width – 2" minimum (50.8 mm).
• Dogging – Hex key dogging and cylinder dogging available. Exit Trim Offerings
• 36" field sizeable to 26" door.
48" field sizeable to 36" door.
• QED219 includes bottom fire bolt. ANSI Series Description
02 QET220 Dummy Lever Escutcheon
02 QET225 Dummy Pull Plate
Keying 14 QET230 Passage Lever Escutcheon
08 QET260 Keyed Lever Escutcheon
• Offered with the following keyway options: BEST 'F' SFIC, KW-Kwikset, WE-Weiser,
SC-Schlage, GA-Yale, LA-Sargent and LC-Less Cylinder. 09 QET280 Night Latch Escutcheon
Consult factory for other cylinder options and for details on Mortise and 01 QET290 Flat Plate
Rim Cylinder requirements.

Warranty Finishes
BHMA Description
• Lifetime Mechanical and 3-year finish
605 Bright Brass
313AN Anodized Duranodic Bronze
626 Satin Chrome

52 Stanley Commercial Hardware
