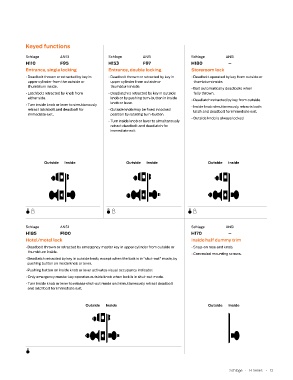

Keyed functions

Schlage ANSI Schlage ANSI Schlage ANSI
H110 F95 H153 F97 H180 –
Entrance, single locking Entrance, double locking Storeroom lock
• Deadbolt thrown or retracted by key in • Deadbolt thrown or retracted by key in • Deadbolt operated by key from outside or
upper cylinder from the outside or upper cylinder from outside or thumbturn inside.
thumbturn inside. thumbturn inside.
• Bolt automatically deadlocks when
• Latchbolt retracted by knob from • Deadlatch is retracted by key in outside fully thrown.
either side. knob or by pushing turn-button in inside • Deadlatch retracted by key from outside.
knob or lever.
• Turn inside knob or lever to simultanously • Inside knob simultaneously retracts both
retract latchbolt and deadbolt for • Outside knob may be fixed in locked latch and deadbolt for immediate exit.
immediate exit. position by rotating turn-button.
• Outside knob is always locked.
• Turn inside knob or lever to simultanously
retract deadbolt and deadlatch for
immediate exit.

Outside Inside Outside Inside Outside Inside

Schlage ANSI Schlage ANSI
H185 F100 H170 –
Hotel/motel lock Inside half dummy trim
• Deadbolt thrown or retracted by emergency master key in upper cylinder from outside or • Snap-on rose and knob.
thumbturn inside.
• Concealed mounting screws.
• Deadlatch retracted by key in outside knob, except when the lock is in “shut-out” mode, by
pushing button on inside knob or lever.
• Pushing button on inside knob or lever activates visual occupancy indicator.
• Only emergency master key operates outside knob when lock is in shut-out mode.
• Turn inside knob or lever to release shut-out mode and simultaneously retract deadbolt
and latchbolt for immediate exit.

Outside Inside Outside Inside

Schlage • H Series • 13
