4 | ENERGY TRANSFER

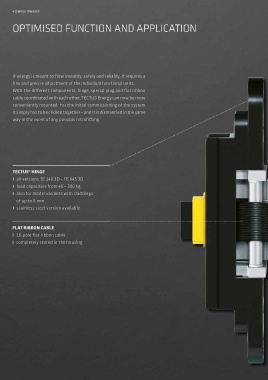

OPTIMISED FUNCTION AND APPLICATION

If energy is meant to flow invisibly, safely and reliably, it requires a
fine and precise adjustment of the individual functional units.
With the different components, hinge, special plug and flat ribbon
cable coordinated with each other, TECTUS Energy can now be more
conveniently mounted. For the initial commissioning of the system
it simply has to be clicked together – and it is dismantled in the same
way in the event of any possible retrofitting.

TECTUS® HINGE
〉 all versions TE 240 3D – TE 645 3D
〉 load capacities from 40 – 300 kg
〉 also for model variants with claddings
of up to 8 mm
〉 stainless steel version available

FLAT RIBBON CABLE
〉 16-pole flat ribbon cable
〉 completely stored in the housing
