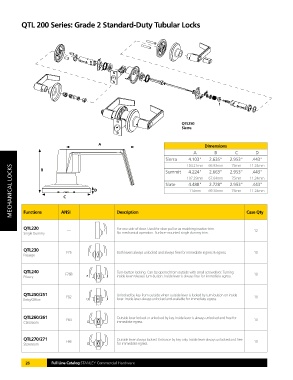

QTL 200 Series: Grade 2 Standard-Duty Tubular Locks

QTL250
Sierra

A
Dimensions
A B C D
4.103"
Sierra 104.21mm 66.93mm 2.953" 11.24mm
.443"
2.635"
75mm
MECHANICAL LOCKS C D Slate 107.29mm 67.64mm 2.953" 11.24mm
B
2.953"
Summit
4.224"
2.663"
.443"
75mm
2.728"
4.488"
.443"
114mm
11.24mm
75mm
69.30mm
Functions
QTL220 ANSI Description Case Qty
For one side of door. Used for door pull or as matching inactive trim.
—
12
Single Dummy No mechanical operation. Surface-mounted single dummy trim.
QTL230
Passage F75 Both levers always unlocked and always free for immediate ingress & egress. 10
QTL240 F76B Turn-button locking. Can be opened from outside with small screwdriver. Turning 10
Privacy inside lever releases turn-button. Inside lever is always free for immediate egress.

QTL250/251 F82 Unlocked by key from outside when outside lever is locked by turn-button on inside 10
Entry/Office lever. Inside lever always unlocked and available for immediate egress.

QTL260/261 F84 Outside lever locked or unlocked by key. Inside lever is always unlocked and free for 10
Classroom immediate egress.

QTL270/271 F86 Outside lever always locked. Entrance by key only. Inside lever always unlocked and free 10
Storeroom for immediate egress.

26 Full Line Catalog STANLEY Commercial Hardware
