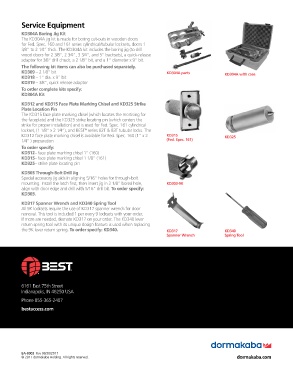

P. 12

Ser vice Equip ment

          KD304A Boring Jig Kit
            The KD304A jig kit is made for boring cut-outs in wooden doors
          for Fed. Spec. 160 and 161 series cylindrical/tubular locksets, doors 1
          3⁄8” to 2 1⁄4” thick. The KD304A kit includes the boring jig (to drill
          wood doors for 2 3⁄8”, 2 3⁄4”, 3 3⁄4”, and 5” backsets), a quick-release
          adaptor for 3⁄8” drill chuck, a 2 1⁄8” bit, and a 1” diameter x 9” bit.
          The following kit items can also be purchased separately.
          KD309 – 2 1⁄8” bit                                           KD304A parts            KD304A with case
          KD318 – 1” dia. x 9” bit
          KD319 – 3⁄8”, quick release adaptor
          To order complete kits specify:
          KD304A Kit
          KD312 and KD315 Face Plate Marking Chisel and KD325 Strike
          Plate Location Pin
            The KD315 face plate marking chisel (which locates the mortising for
          the faceplate) and the KD325 strike locating pin (which centers the
          strike for proper installation) and is used for Fed. Spec. 161 cy lin dri cal
          lockset, (1 1/8” x 2 1⁄4”), and BEST  series 82T & 83T tubular locks. The
                                    ®
          KD312 face plate marking chisel is avail able for Fed. Spec. 160 (1” x 2   KD315     KD325
          1⁄4” ) preparation                                           (Fed. Spec. 161)
            To order specify:
          KD312– face plate marking chisel 1” (160)
          KD315– face plate mark ing chisel 1 1/8” (161)
          KD325– strike plate lo cat ing pin
          KD303 Through-Bolt Drill Jig
            Special accessory jig aids in aligning 5/16” holes for through-bolt
          mounting. Install the latch first, then insert jig in 2 1/8” bored hole,   KD303-9K
          align with door edge and drill with 5/16” drill bit. To order specify:
          KD303.
          KD317 Spanner Wrench and KD340 Spring Tool
            All 9K locksets require the use of KD317 spanner wrench for door
          removal. This tool is included 1 per every 9 locksets with your order.
          If more are needed, desnate KD317 on your order. The KD340 lever
          return spring tool with its unique design feature is used when replacing
          the 9K lever retur n spring. To order specify: KD340.        KD317                   KD340
                                                                       Spanner Wrench          Spring Tool











          6161 East 75th Street
          Indianapolis, IN 46250 USA

          Phone 855-365-2407
          bestaccess.com










          BA-0003  Rev 08/30/2017
